Boat Building

                    © Seven Oceans Video
There were two sister boats built at the same time at the Szczecin Boatyard. One was Cetus, built for Admiral Cap for Jurek Siudy and his team, a light, strictly racing version of the same design, with one foot longer overall length (she was one foot longer on the bottom part of the hull and one foot shorter on deck. The second boat was Nike II, more heavily built to minimize the risks of solo sailing. For example, when the size of her mast or rigging was calculated, the next bigger size was selected for safety reason (during solo sailing there is no continuous watch for changes in sailing conditions.)

She was also equipped with a nice mahogany interior because long distance sailing, racing, and expeditions were in her future. She received much more powerful and dependable steering, hydraulics, navigation instruments, electrical system and autopilots.

Both boats were built with the top boat building technology of that time, with the use of Airex, Kevlar, Rod Rigging, Self Tailing Winches, Navtec Hydraulic and etc.

The design concept for Nike was later turned into cruising version of the design and about forty boat were built that way.

© Seven Oceans Video

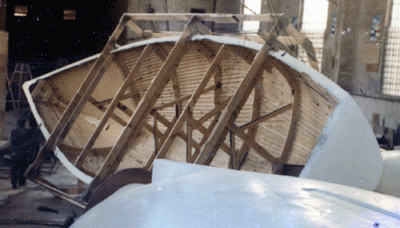

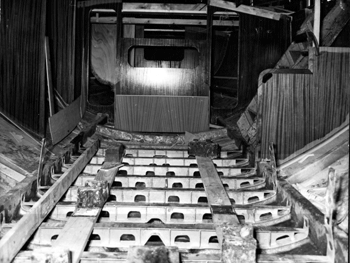

The sandwich fiberglass/Kevlar hull was strongly reinforced by steel framing at the bottom to which the keel was attached as well as two metal frames on both sides of mast for strong support of mast and its rigging.

   © Seven Oceans Video

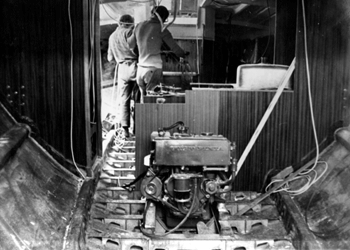

The Volvo Penta MD II diesel engine was located in front of the mast for better IOR rating.

     © Seven Oceans Video

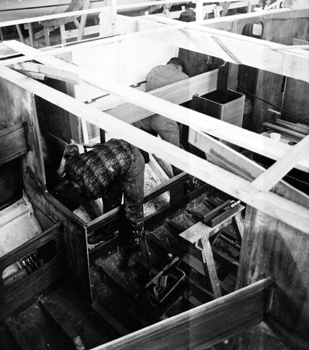

The solid mahogany interior provided 9 fixed berths and one double bank in three separate cabins. There was a navigation station with large table, instrument panel and settee under the entry cockpit and a galley with a double sink, refrigerator and deep freezer.

     © Seven Oceans Video

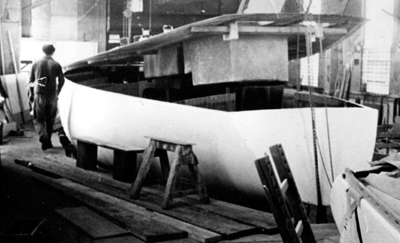

The flush deck was molded separately and bolted together with the hull. The deck layout was very similar to many Admiral's Cup racing boats with two separate cockpits, a shallow one for the working crew and a deeper one for the helmsman.

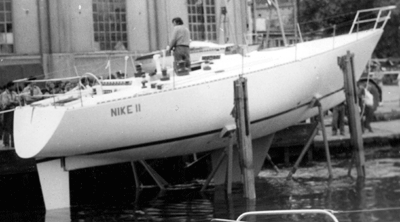

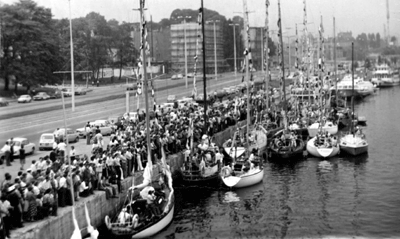

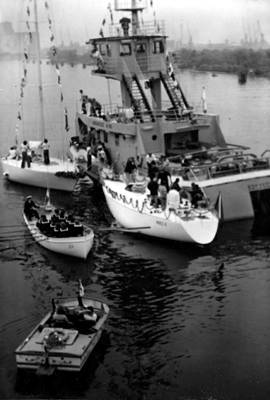

The boatbuilding took 10 months and Nike was spectacularly launched and christened together with her sister boat Cetus in June 1979 in Szczecin.  © Seven Oceans Video

        © Seven Oceans Video
